I recently had the need to hook Ninja up to Excel. After perusing various forums, I couldn't find any instructions on how to do it. In the end, I had to figure it out myself. I posted the instructions below on another, less public forum before Christmas but decided since then to give it to a wider audience.

If you want Ninja hooked up to Excel - here's how to do it...

Microsoft Interop

This is a pre-requisite. It allows communications between Ninja & Excel. Microsoft has 2 versions:

Office 2003
Download details: Office 2003 Update: Redistributable Primary Interop Assemblies

Office 2007
Download details: 2007 Microsoft Office System Update: Redistributable Primary Interop Assemblies

The particular dll we are interested from is: Interop.Microsoft.Office.Interop.Excel.dll
The target directory for this dll should be: <My Documents>\NinjaTrader 7\bin\Custom

You can either install the Interop Assemblies into this directory or just move the dll file there.

Referencing the DLL in Ninja

Next you need to create a reference to the Interop DLL in Ninja. To do this, you need to get to the references window which is available when editing an indicator. Just choose any indicator for this.

Open Ninja Control Centre -> Tools -> Edit NinjaScript -> Indicator -> Select ANY Indicator

Once the indicator is open, right click in the body of the indicator window and select "References". You will see a window appear that looks like this:

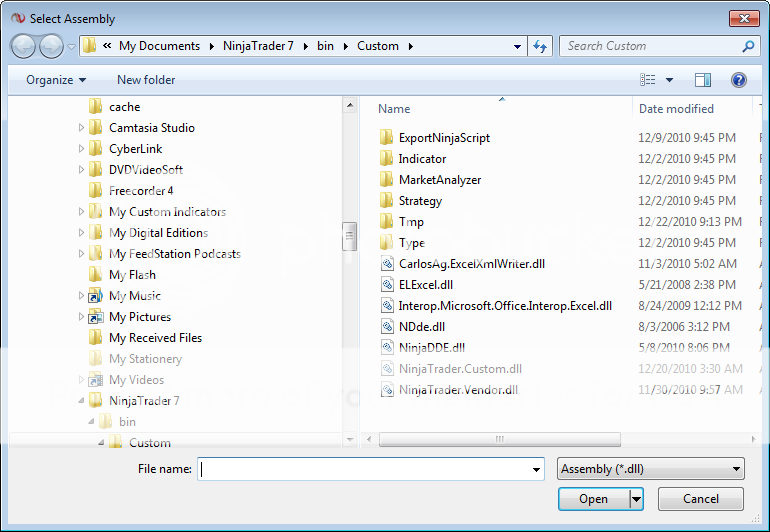

Click "Add", it will then open up an explorer window looking at the <My Documents>\NinjaTrader 7\bin\Custom directory - locate the dll and click "insert"

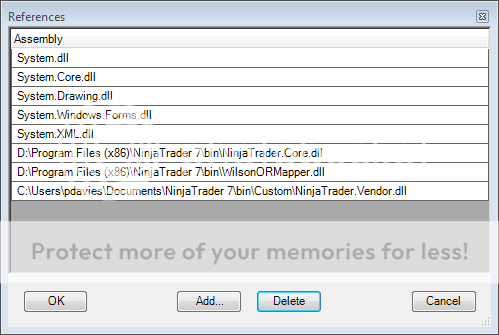

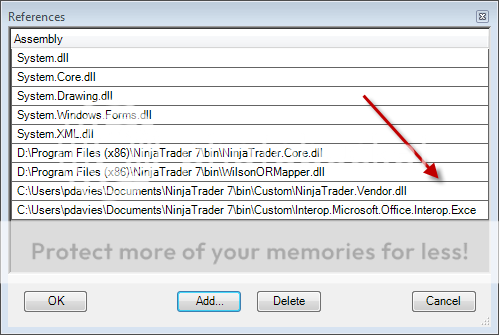

Then you should see the following in the references window:

Now you are ready to go and start writing code to integrate with Excel


to be continued...



[DionysusToast]

So now we need to actually post data to Excel. The whole of Excels object model is available to you and I can't show you how to use all of it but I can show you how to do the basics. The goal of this post is to show you how to open a workbook.

1) Using Declarations

Any Indicator/Strategy that uses Excel will first need to ensure that the we include the microsoft assembly. We are also using System.IO to do some work on the file name.

#region Using declarations
using System;
using System.ComponentModel;
using System.Diagnostics;
using System.Drawing;
using System.Drawing.Drawing2D;
using System.Xml.Serialization;
using NinjaTrader.Cbi;
using NinjaTrader.Data;
using NinjaTrader.Gui.Chart;
[COLOR="Blue"]using Excel = Microsoft.Office.Interop.Excel;
using System.IO;[/COLOR]
#endregion

Now - you can either invoke Excel with a blank sheet OR you can have a pre-formatted spreadsheet to open. I prefer the latter - set up my spreadsheet with the correct formats etc. and then invoke it from Ninja, so we need some variables to store the file name and worksheet name. In this case, the spreadsheet is C:\DTTest.xls. Other vars here should become clear as we continue.

        #region Variables
        // Wizard generated variables
            private int myInput0 = 1; // Default setting for MyInput0
        // User defined variables (add any user defined variables below)
            private string excelFile = @"C:\DTTest.xls";
            private string excelSheetName = "Sheet1";
            private bool workSheetFound = false;
            private bool excelOpen=false;
            private string fullFileName;
            private string simpleFileName;
            Excel.Application excelApp;
            Excel._Workbook excelWorkBook;
            Excel._Worksheet excelSheet;
            Excel.Range excelRange;
            private int rowCount = 1;
            private int temp;
        #endregion

This part alone was a real pain in the ass to get right, although the actual code I ended up with looks so simple! If the spreadsheet is open, it will hook up to it, so you can work with the spreadsheet. If it isn't already open, then it will open it for you.

private void OpenWorkbook(string FileName)
        {

            try
            {
                excelApp = (Excel.Application)System.Runtime.InteropServices.Marshal.GetActiveObject("Excel.Application");
            }
            catch
            {
                excelApp = new Microsoft.Office.Interop.Excel.Application();
            }
            simpleFileName = Path.GetFileName(excelFile);
            try
            {
               excelWorkBook = excelApp.Workbooks.get_Item(simpleFileName);
            }
            catch
            {
                excelWorkBook = (Excel._Workbook) (excelApp.Workbooks.Open(excelFile,
                    false, true, Type.Missing,Type.Missing, Type.Missing, Type.Missing,Type.Missing,
                    Type.Missing, Type.Missing, Type.Missing,Type.Missing, Type.Missing, Type.Missing,Type.Missing));
            }
        }

The OpenWorkbook method, when invoked will ensure your workbook is open & ready to use (note that I'll put up a full NinjaScript at the end).



[DionysusToast]

As well as finding/opening the spreadsheet - we have to find the worsheet to play with. In the above example, we are looking have a sheet named "Sheet1". The following code will return the worksheet as an object to be manipulated.

       // Return the worksheet with the given name.
        private Excel.Worksheet FindSheet(Excel._Workbook excelWorkBook, string excelSheetName)
        {
            foreach (Excel.Worksheet excelSheet in excelWorkBook.Sheets)
            {
                if (excelSheet.Name == excelSheetName) return excelSheet;
            }
            return null;
        }

So - now we have our spreadsheet open and we have a specific worksheet from that spreadsheet loaded as an object and we can manipulate it.

If we want to change the properties, you first create an object for the range of cells you want to change. For more info on the Excel object model - go here:

http://msdn.microsoft.com/en-US/library/syyd7czh(v=VS.80).aspx

Here's some basic stuff:

               excelRange = excelSheet.get_Range("B1","B201");
                excelRange.Font.Color = System.Drawing.ColorTranslator.ToOle(System.Drawing.Color.DarkBlue);
                excelRange.Interior.Color = System.Drawing.ColorTranslator.ToOle(System.Drawing.Color.Cornsilk);
                excelRange.Font.Bold = true;
                excelRange.ClearContents();

The first line creates an object of cells and then the following 4 lines reformat and clear the cells.

To post to excel, you need to do cell by cell (as far as I am aware). In this case, you can't use the "A1" type column/row pairs references - you have to use row NUMBER and column. Again - there could be other ways that I am not aware of.

An example of posting data into cells would be :

            excelSheet.Cells[rowCount,1] = ToDay(Time[0]);
            excelSheet.Cells[rowCount,2] = ToTime(Time[0]);
            excelSheet.Cells[rowCount,3] = Open[0];
            excelSheet.Cells[rowCount,4] = High[0];
            excelSheet.Cells[rowCount,5] = Low[0];
            excelSheet.Cells[rowCount,6] = Close[0];
            excelSheet.Cells[rowCount,7] = Volume[0];

All fairly simple so far...



[DionysusToast]

This is pretty much all there is to it. So - it's time for an example.

I am attaching an indicator called "BigMikeExcel" (no prizes for guessing which forum I posted this to first), as usual - just attach it to a chart. Note that you will not be able to import this indicator if you haven't installed and referenced the Microsoft DLL. This is a simple indicator without clutter for you to examine how this works. Please don't complain about there being little in the way of error trapping here!

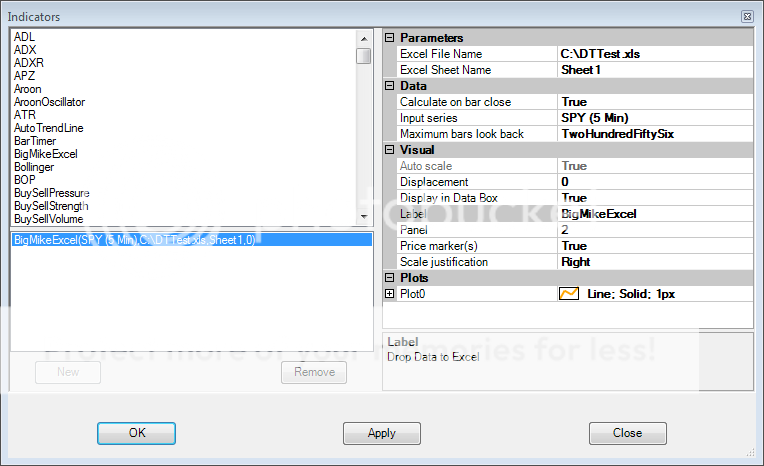

When you attach the indicator, you will see that you have a space to put in Excel File and workseet name. I am attaching a spreadsheet that can be used. You can put it anywhere on your hard drive - just make sure you change these parameters.

The indicator will do the following:
1 - Find the open spreadsheet OR open it if it is not already open
2 - Format the background colours & foreground colours of colums A-G
3 - Put in headers in row 1
4 - Post the date, time, OHLC, volume to columns A-G
5 - When it's posted 200 prices, it'll start again from the top & keep rolling round

I know this is fairly useless in terms of functionality - it's just to show you how to get the comms working.

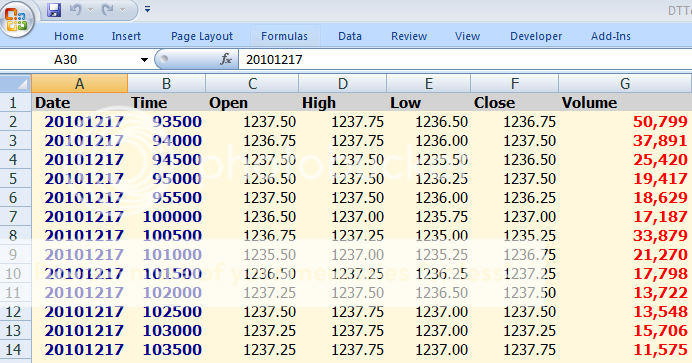

Your spreadsheet should look like this:

That's it - any questions - feel free to ask. Like I say, I'm not a C# programmer, so my code wont be perfect. The whole of Excels object model is available so you can literally do anything that Excel can do.

Good luck.

DT
